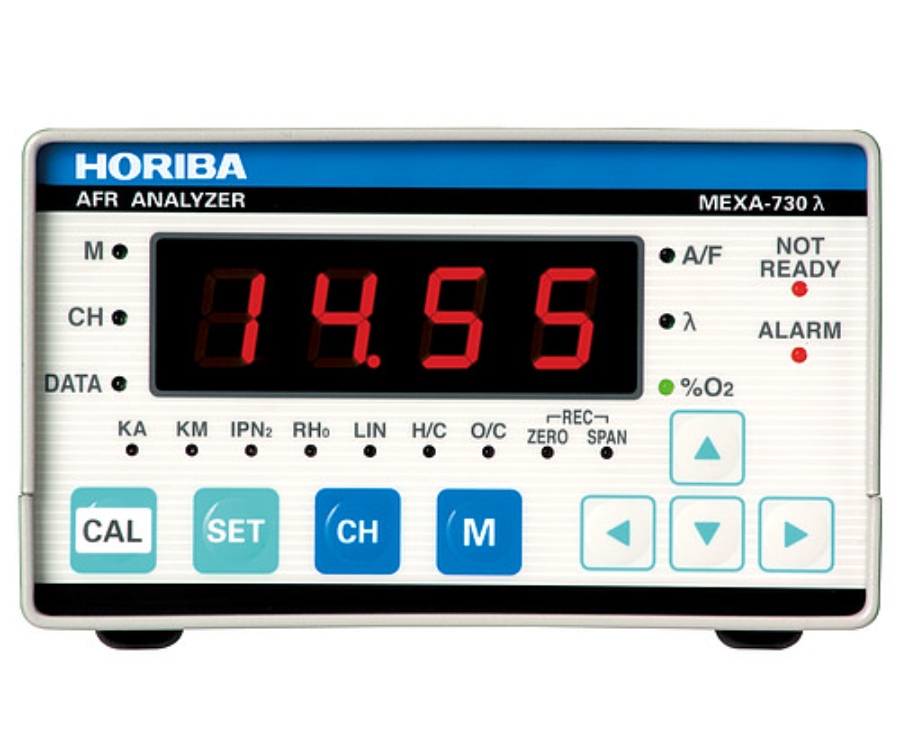

HORIBA MEXA-730λ

HORIBA MEXA-730λ

‎MEXA-730λ采用此性能,并增加了原始设计,以增强可见性和操作性。‎ ‎新的传感器系数数据存储器功能使恢复备份数据成为可能,从而提供更快的启动时间并节省宝贵的运行时间。

详细介绍

概要

用来实现汽车发动机的理想燃烧状态以及净化汽车尾气所必需的空燃比检测设备。该设备凝聚了HORIBA最新的空燃比检测技术。HORIBA 空燃比检测技术在汽车排气分析中具有世界领先地位,在全球拥有大量的用户。大约80ms的高速响应性,较宽的测量量程,小巧化的设计(容积和重量都只有原来的1/3),是汽车发动机研究、实时检测等领域的一种非常方便的便携式空燃比分析仪,可以同时进行发动机的空燃比、λ、氧气浓度测量,一台设备可以满足多种用途。

規格

Control unit

Model name

MEXA-730λ

Display range

A/F : 3.99 to 500.0
λ : 0.275 to 30.00
O2 : 0.00 to 99.99 vol%

Accuracy of A/F

(Guarantee range is from 9.5 to 200 A/F)
(Model gas at room temperature, atmospheric pressure is used):
With 3-point calibration at 9.5 A/F, stoichiometric point and 60.0 A/F
9.50 A/F to stoichiometric point: within ±0.3 A/F
at stoichiometric point: within ±0.1 A/F
stoichiometric point to 20.00 A/F: within ±0.3 A/F
20.01 to 30.00 A/F: within ±0.7 A/F
30.01 to 40.00 A/F: within ±1.0 A/F
40.01 to 50.00 A/F: within ±1.5 A/F
50.01 to 60.00 A/F: within ±2.0 A/F
60.01 to 80.00 A/F: within ±6.0 A/F
80.01 to 100.0 A/F: within ±9.0 A/F
100.1 to 150.0 A/F: within ±20.0 A/F
150.1 to 200.0 A/F: within ±38.0 A/F

Response time

Typical 80 ms (Max.150 ms)

Digital input-output

RS-232C (standard)

Analog output

0 to 5 V DC (scaling possible)

H/C setting range

0.00 to 9.99 (key selectable)

O/C setting range

0.000 to 6.811 (key selectable)

Calibration gas

Ambient air or standard gas

Acceptable vibration

0 to 294 m/s2

Power

10-30 V DC, 50 W

Dimensions

130 (W) × 170 (D) × 75 (H) mm

Mass

Approx. 1.1 kg (Control unit)

UEGO Sensor (Data sheet supplied with each UEGO sensor)

Sample gas temperature

-7℃ to 900℃

Heater temperature control

PID

Hexagonal nut size

22 mm

Torque

40±4N・m

Standard accessories

UEGO sensor (1), Sensor cable 10 m (1), DC power cable (1), Analog output cable (1)

Options

AC unit PSU-700, Two-channel rack kit (incl. AC power adapter), Sensor cable (5 m, 20 m), Calibration unit, Nut for attaching sensor, Closing-up bolt, RS-232C cable

产品相关图及其它

Dimensional outlines (units: mm)

Dimensional outlines (units: mm) UEGO Sensor
